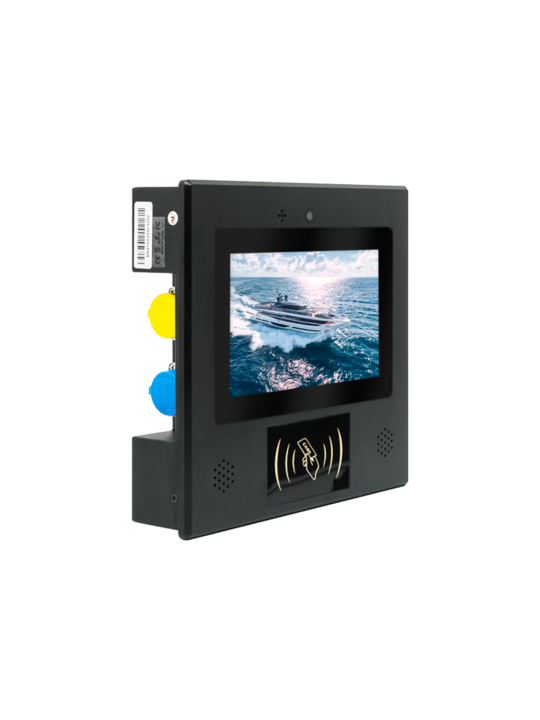

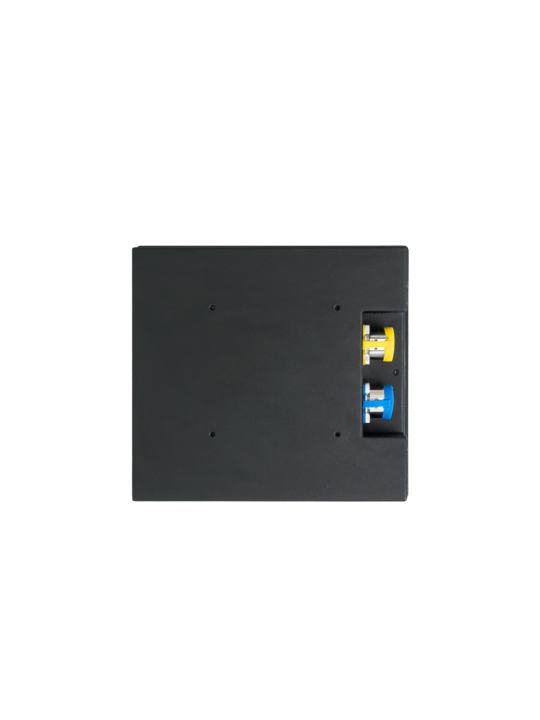

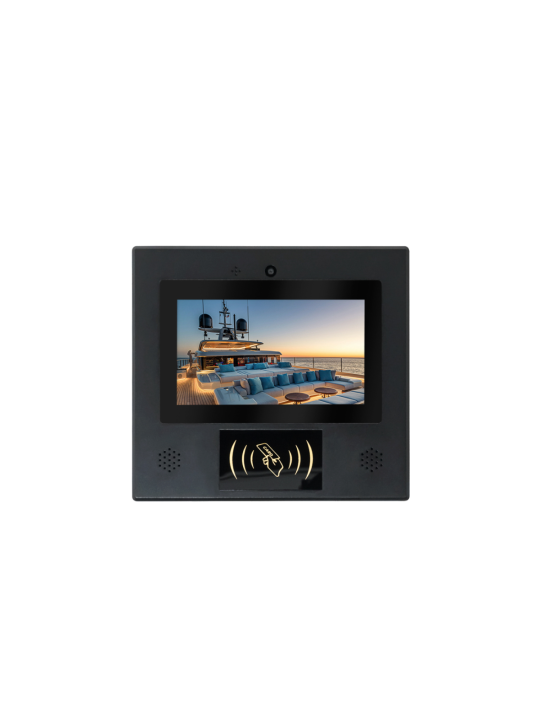

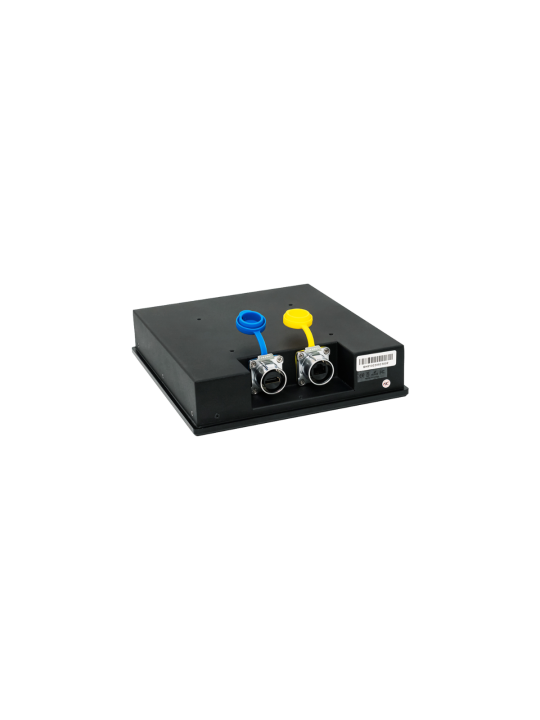

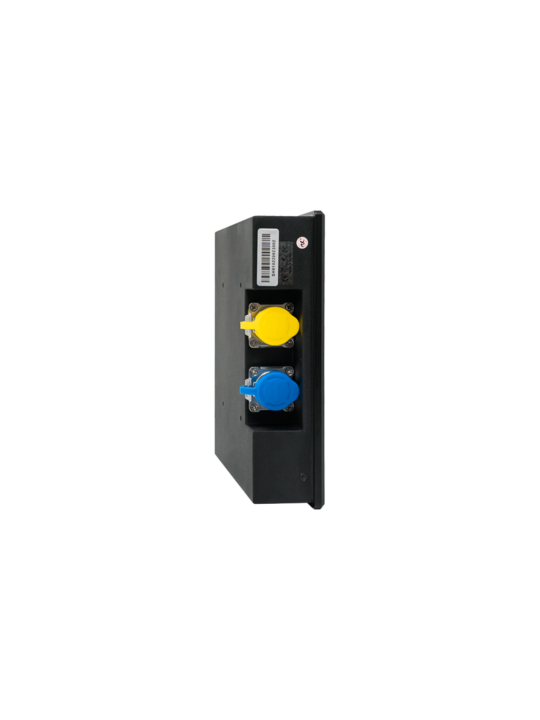

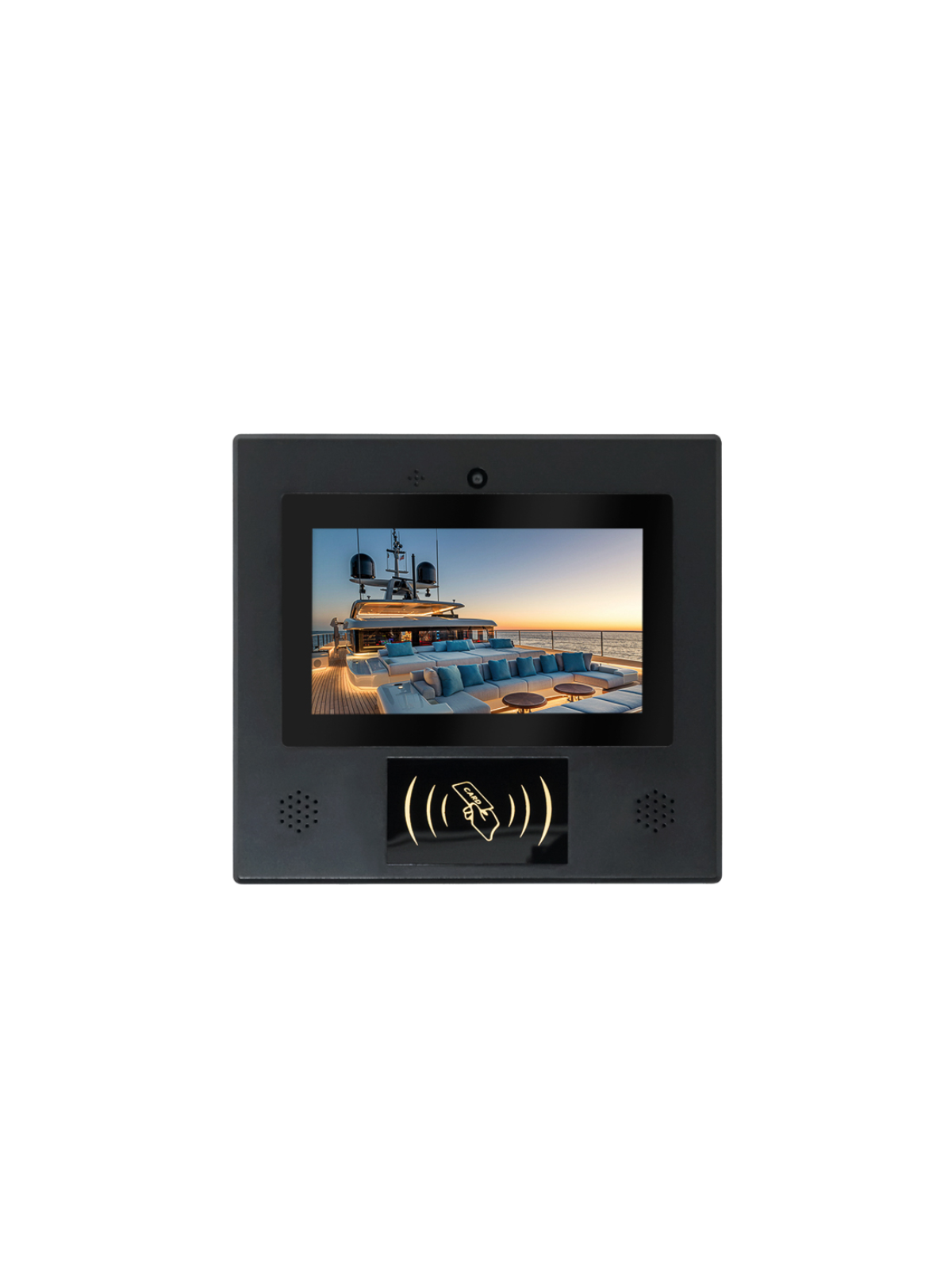

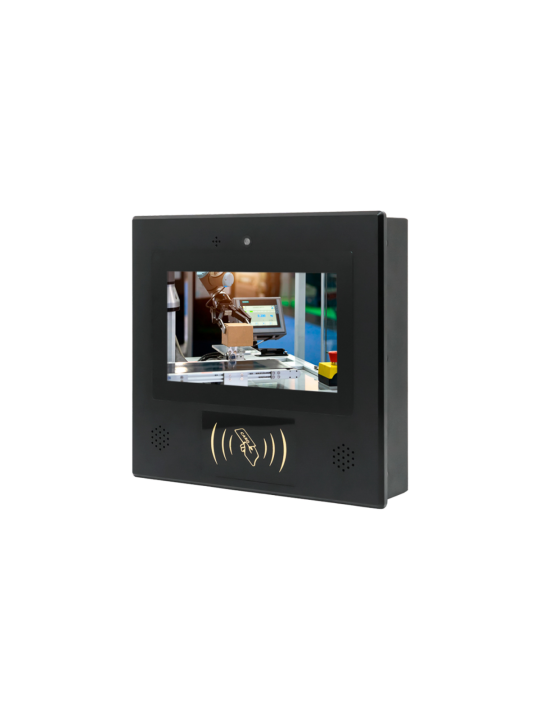

POE Monitor 7", 16:9, Capacitive Touchscreen
ITM-Q070
- 7" POE Monitor, 1024x600 risolution (16:9)
- Up to 1000 NIT, sunlight readable
- Capacitive Touchscreen
- Input Video: HDMI
- CE, FCC, RoHS e IP67
- 3 years Warranty
Robust and durable Aluminum alloy bezel and metal back case, full IP67 waterproof.
Industrial wide temperaturer LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2.5mm IK06 tempered glass for vandalproof.
EETI waterproof solution, touch function can work well with drop water on the screen.
1000 nits high brightness, sunlight readable, Anti glare.
High performance mainboard, 7x24 continuous operation.
Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
POE voltage : 48V (37-57 volts), PoE standard IEEEE 802.3af.
microphone and speaker use RSTP
RFID 125KHz EM reading module,Wiegand 26 bits, NFC: 13.56MHz

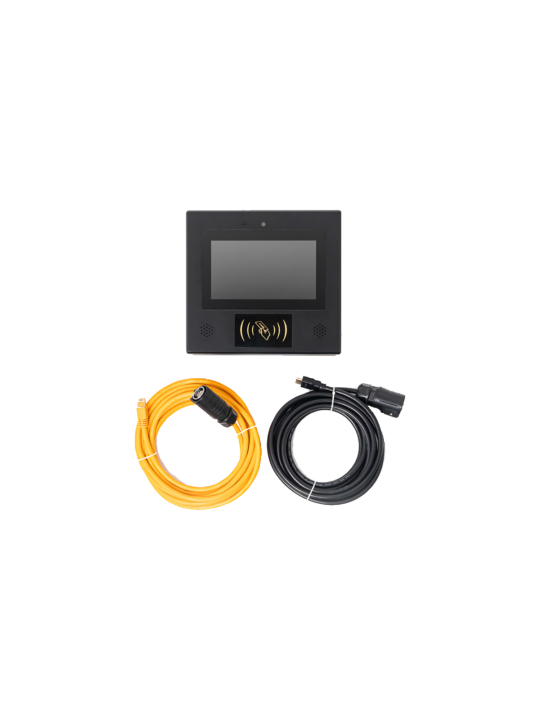

All-in-One PoE cable: Touch screen+camera+speaker+microphone+NFC reader
ITM-Q070
Specific References
Screen Parameters
| LCD Size | 7" TFT LCD |
| Resolution | 1024 x 600 |
| Colour | 16.7M |
| Brightness | 250 cd/m2 |
| Contrast ratio | 800:1 |
| View Angle | 80°/80°/70°/70° (R/L/U/D) |
Interface Parameters
| Power interface | DC24~48V (4PIN ) 48V (37-57 volts), PoE standard IEEEE 802.3af |
| Touch type | Capacitive Touch |
| HDMI | x1 |
| USB | x2 |
Product Reliability Parameters
| Working temperature | -20°C ~ 70°C |
| Storage temperature | -30°C ~ 80°C |
| Relative humidity | Humidity: 100% Non-Condensing |
| Product certifications | CE / ROHS / FCC |
| Dimensions (only monitor) | 154,21 mm x 85,92 mm |
- 7" POE Monitor, 1024x600 risolution (16:9)
- Up to 1000 NIT, sunlight readable
- Capacitive Touchscreen
- Input Video: HDMI
- CE, FCC, RoHS e IP67
- 3 years Warranty
