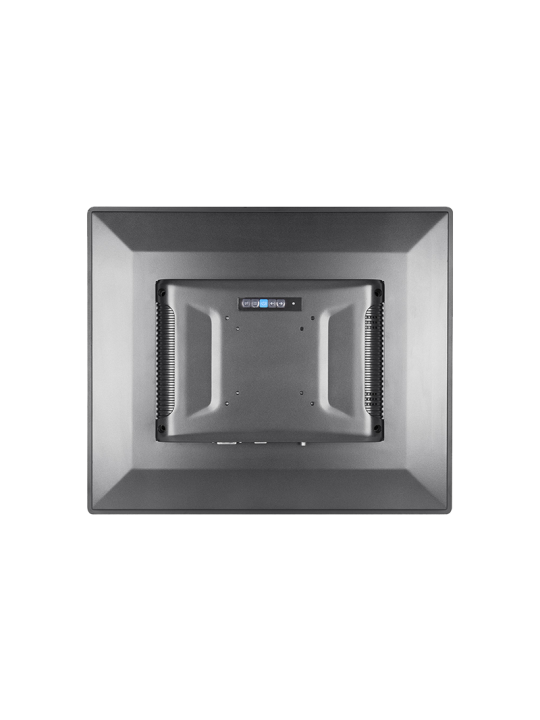

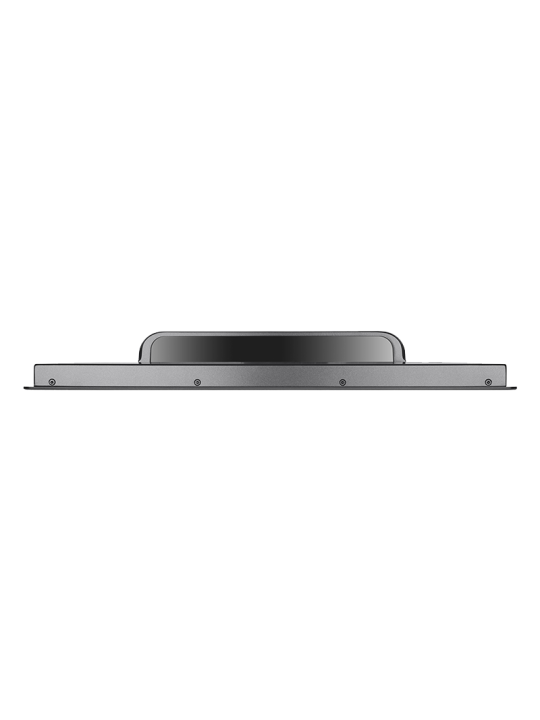

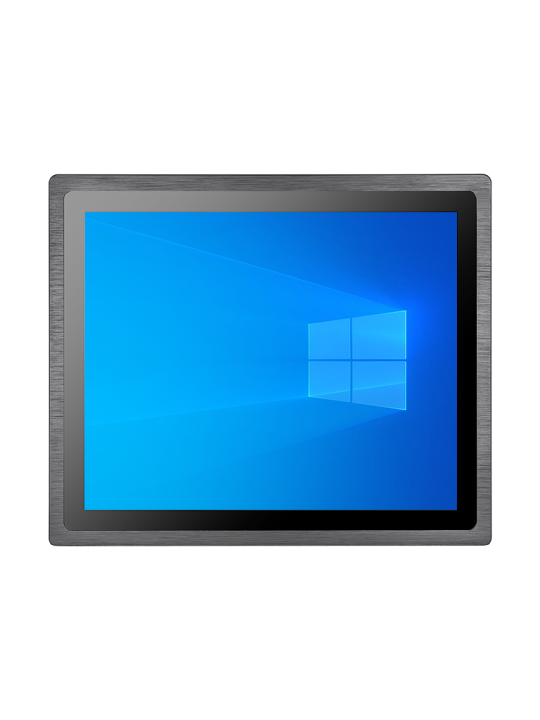

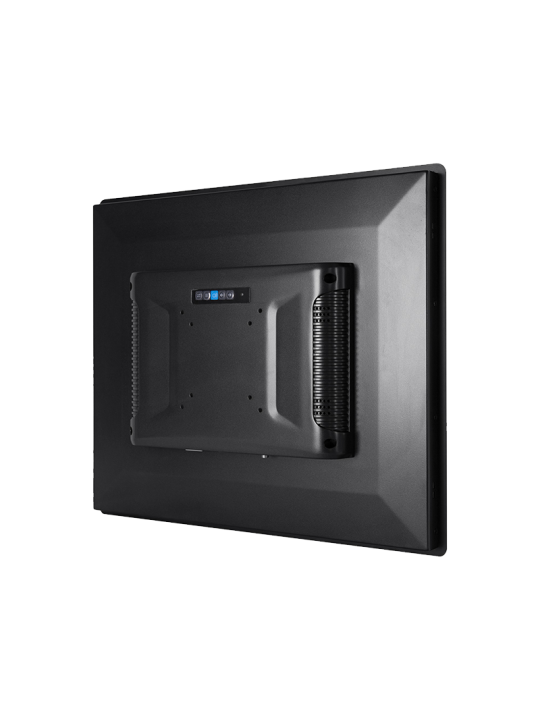

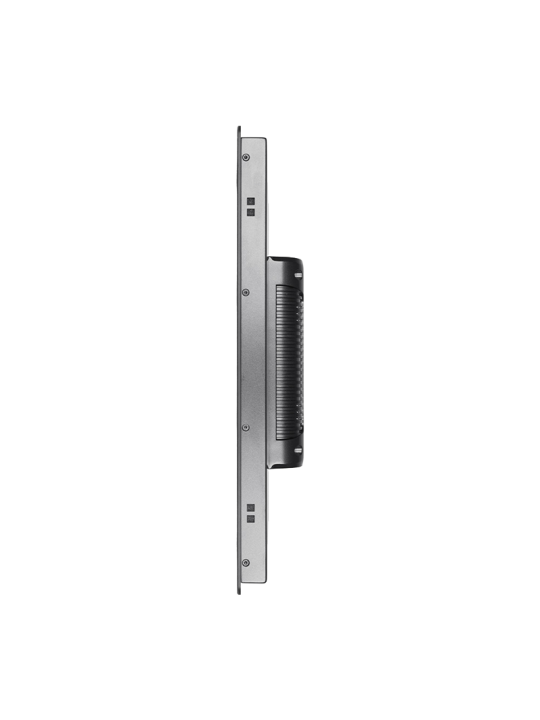

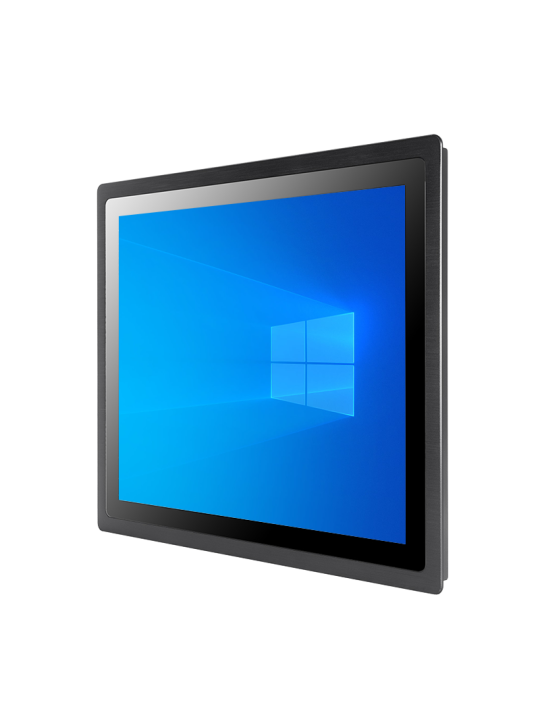

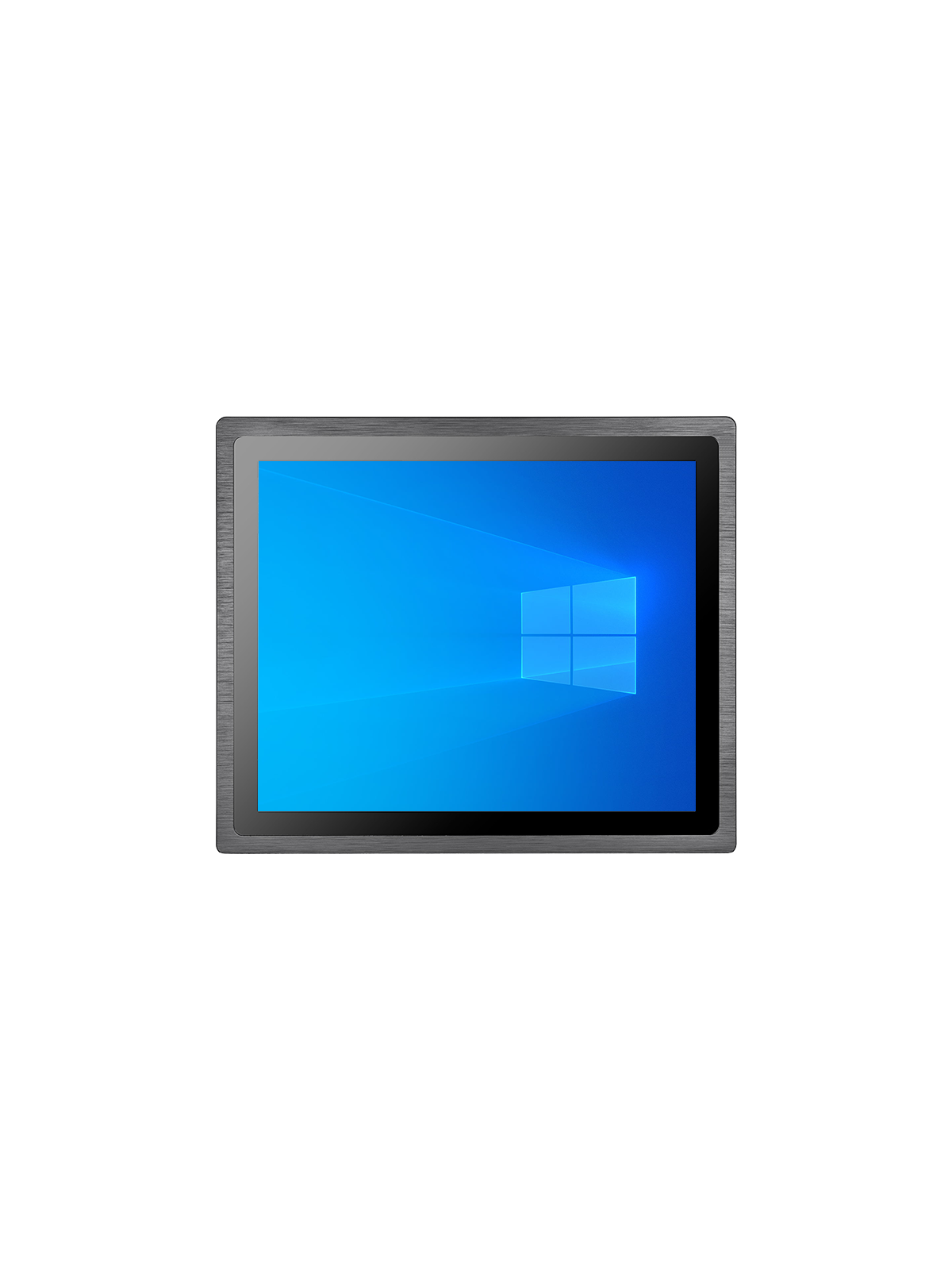

Panel mount industrial monitor 19", 5:4, IP65 front, touchscreen, 12-36 V
ITM-A190
- Panel mount industrial monitor
- Touchscreen optional: Without / Resistive / Capacitive
- Panel mount, vesa or desktop possible installations
- Video input: HDMI + DVI + VGA
- Power supply 12 ~ 36 V DC
- Available colours "Black" o "Silver"
Industrial monitor in aluminum alloy, with a clean and elegant design, with an ultra-thin 3 mm frame. Its sturdiness characteristics and the IP65 grade of protection make it suitable for industrial, military, totem, automation applications, and in all those applications where 24/7 device operation is required.

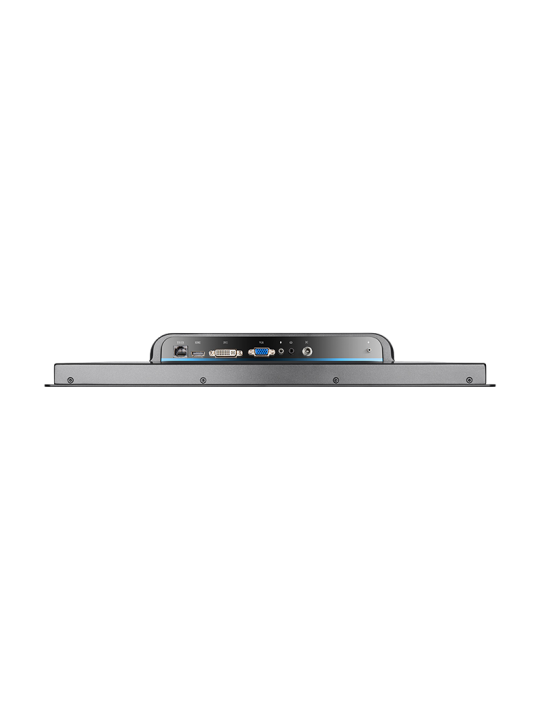

Connectors
Touchscreen optional
Colours: Black o Silver
ITM-A190
Data sheet
- IP Rating
Specific References
Screen Parameters
Physical Characteristics
Interface Parameters
Product Reliability Parameters
Power Parameters
LCD Size | 19" TFT LCD |
Resolution | 1280*1024 |
Colour | 16.7M |
Brightness | 300 cd/m2 |
Contrast ratio | 1000:1 |
Physical Characteristics
Overall Dimensions | W451x H380x D63mm |
Size of opening | W432.6 x H361.6mm |
Interface Parameters
Grounding column | Support (1*GND) |
Power interface | 1*DC2.1, Support 12V-36V wide voltage power supply |
HDMI | 1*HDMI, Support HDMI data input, With a maximum of 1080P |
Touch interface | 1*TOUCH(RJ45) |
Touch type | None / 10 point touch Capacitive / Resistive |
VGA | 1*VGA, Analog signal transmission |
DVI | 1*DVI, Digital signal transmission |
Audio interface | 1*Audio I/O, Support audio input and output |
Product Reliability Parameters
Working temperature | -10°C~60°C |
Storage temperature | -20°C~70°C |
Relative humidity | Humidity: 95% Non-Condensing |
Vibration protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
Impact protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
Product certifications | CCC / CE / FCC / EMC / CB / ROHS |
Waterproof grade | The front panel reaches IP65 protection level |
Power Parameters
Power input | DC 12V~36V |
Static power | 18W |
