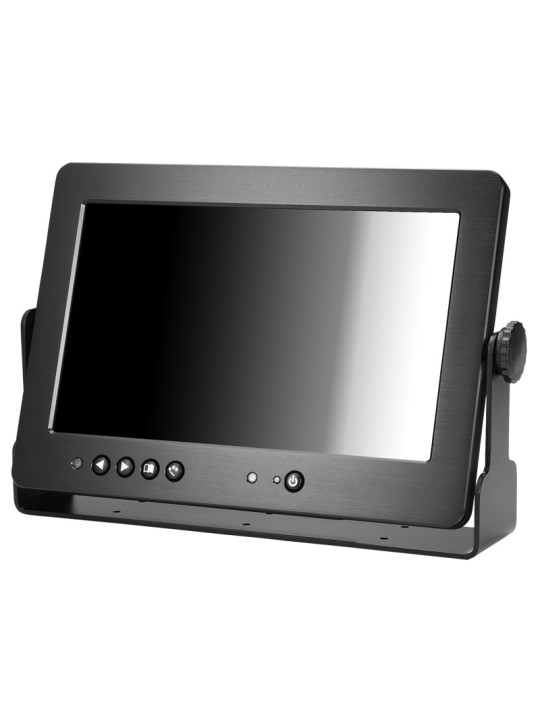

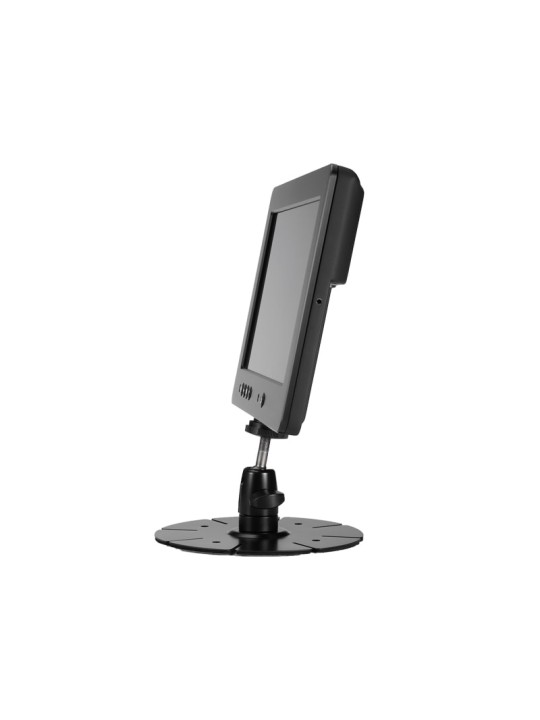

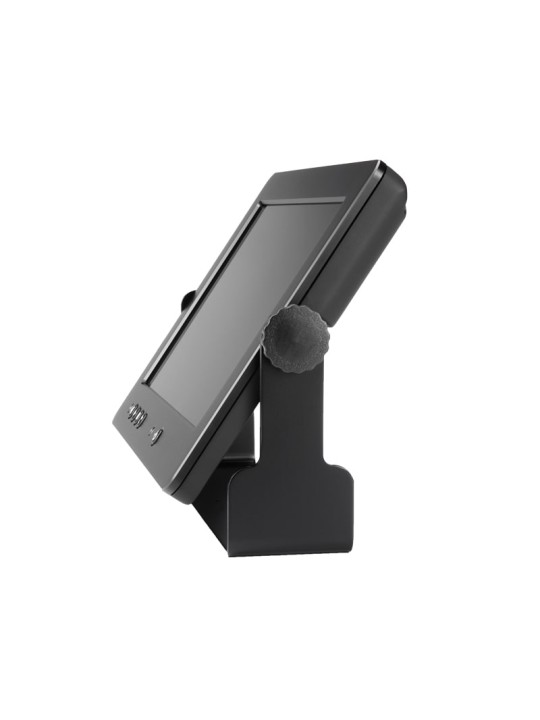

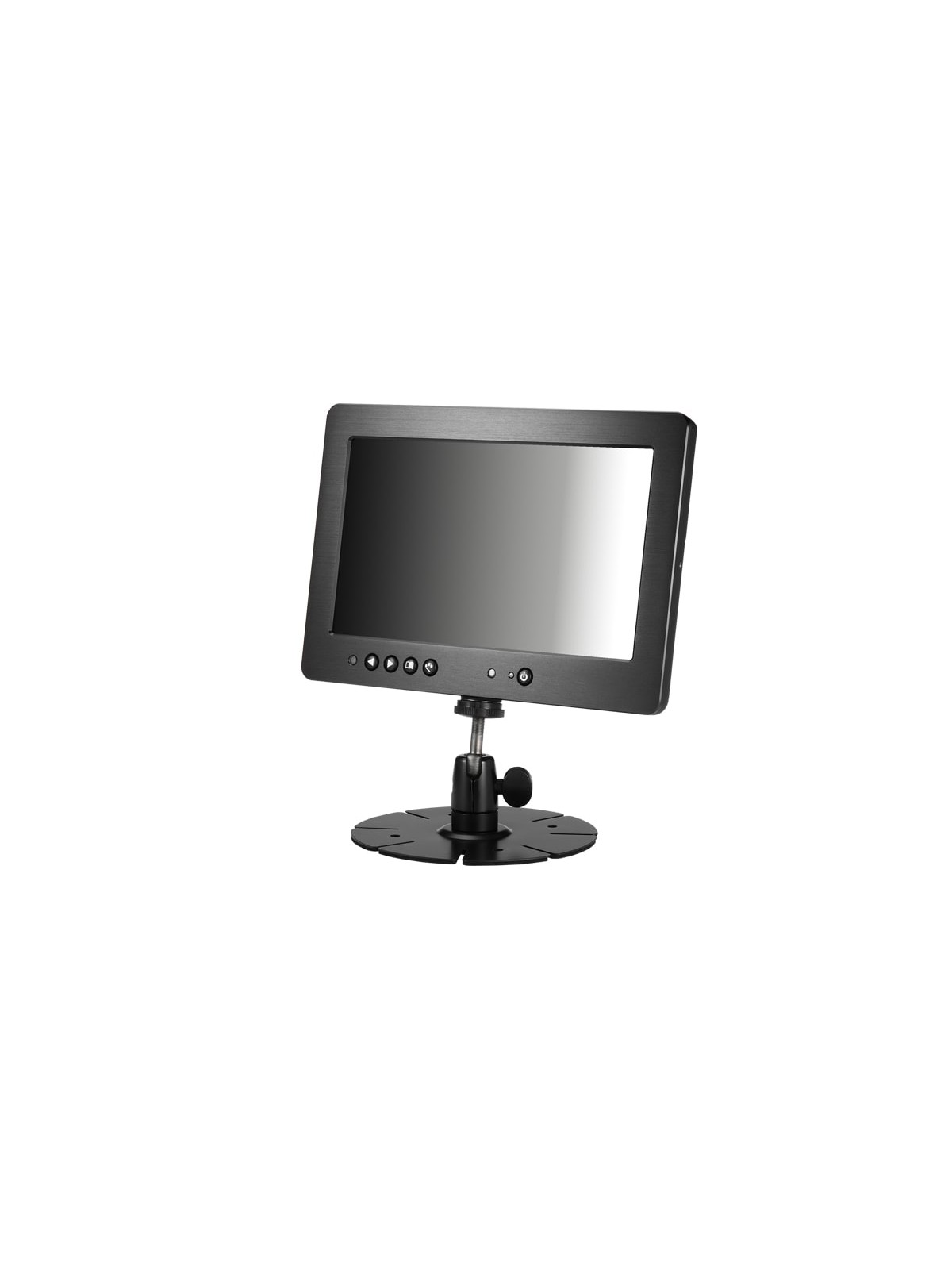

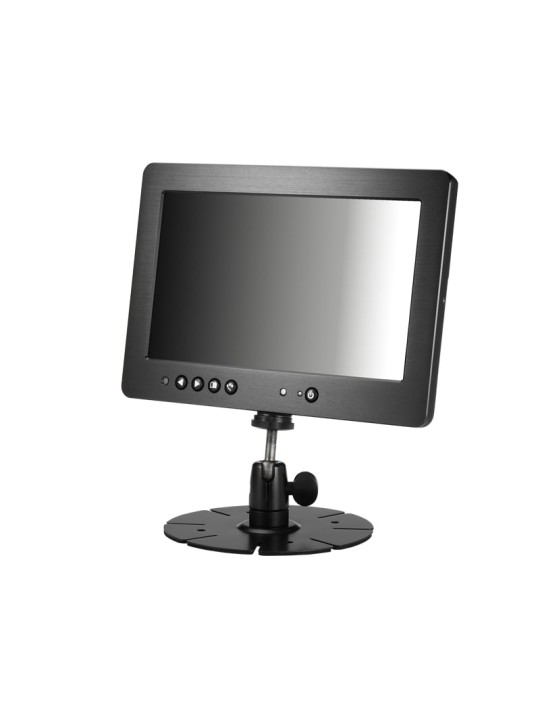

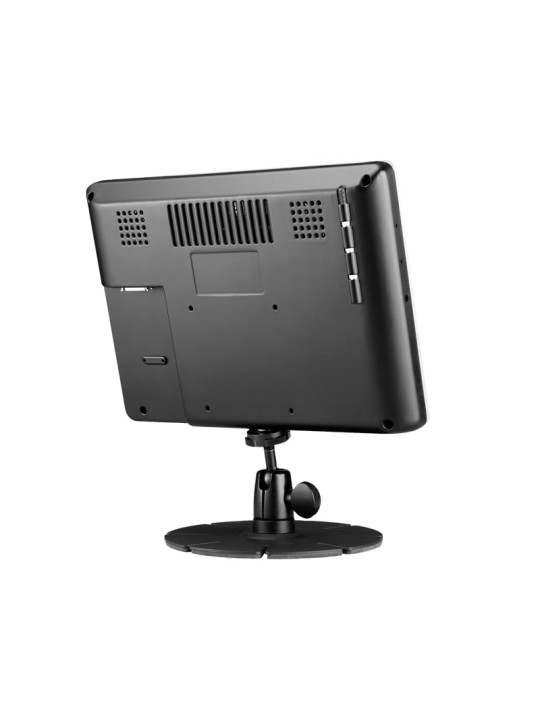

ITV-D121
  • 12.1" In-vehicle Monitor, native resolution 1280x800 (16:9)
  • Up to 1000 NIT for optimal visibility even in brightly lit environments
  • Optional Resistive or Capacitive touchscreen
  • Multi-Monitor Touchscreen Support
  • Anti-Glare Coating
  • Input Video: HDMI, DVI, VGA and Video x2
  • Audio Input x2
  • AV2 Auto Switching for Backup Camera
  • ROHS, REACH, ECE R118-03 Compliant
  • AISS - Advanced Image-Scaling and Shaping
  • 3 years Warranty

A vehicular monitor designed for use in unstable environments (with strong vibrations), it is built with ceramic capacitors that provide excellent resistance to extreme temperatures and improved stability.
Capacitive sensing offers a more responsive tactile interface than resistive sensing. This is achieved by using the ability of the human skin to detect proximity or position of the input. Proximity sensing allows the touch interface to function even if the display is covered by glass or a protective coating.

The monitor can be equipped with a capacitive or resistive touchscreen and has a 1280x800 pixel resolution for a clear and sharp display of information.
Extensive connectivity is offered, including VGA, HDMI, DVI and Video.

ITV-D121

Specific References

Display

LCD Size 12.1" (30.734 cm)
Supported PC Resolution 640 x 480 ~ 1920 x 1080
Resolution 1280 (H)  x 800 (V) HD
Brightness 1000 (cd/m2)
Contrast ratio 1000:1



Interface

Video HDMI, DVI, VGA, Video x2
Touchscreen (Optional)
Single-point resistive or capacitive multi-touch
Audio
1x Audio out
Power interface
1x DC, 12V power input



Mechanical / Environmental

Authentication
FCC, CE, E13, ROHS, REACH, ECE R118-03
Operating temperature -30° ~  85°C
Dimensions (WxHxD) 312W x 230H x 44.2D
Weight 2.85 kg
Vibration Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard
Shock 10G peak acceleration (11ms), IEC 60068-2-27 standard
MTBF > 55,000 Hours or > 6.2 Years of continuous operation
